SYSTEM REQUIREMENTS
WiSys Supports:
SAP Business One Versions:
DI-API 32-Bit
Business One version for SAP HANA version 9.2 and higher. Support for SAP B1 v10 FP2402 and newer began with WiSys Build Release 570.0.
32-Bit Crystal Reports for .NET Framework
SAP Business One Cloud Hosted Environments (If Applicable):
Client Workstation
Operating System: Windows 10, Windows 11
Processor: 2.0 GHz (or better)
Memory: 4 GB of RAM Minimum for 32 bit Windows 7 and 8 GB of RAM for 64-bit Windows 7 and higher workstations
Monitor: VGA or SVGA with 1024 x 768 minimum resolution
Installation: Install from Server
Other: .Net Framework 4.8
Printer: PCL/PS compatible
Pointing Device: Microsoft-compatible mouse
Free Disk Space: Minimum of 500 MB for System / Application Software
32-Bit SAP Business One DI-API
SAP HANA Database Client
SAP Business One Client (For SAP Version 10 Only)
Shipping Scales
WiSys currently supports Fairbanks Ultegra, and Mettler Toledo BC60 scales
Mobile Handheld Device Support
WiSys Hardware Partners:
Android Devices:
MC94 Rugged Handheld with Pistol grip (Ultra rugged device with touch screen – and physical keypad; Extended range, 1D and 2D scanning from a few inches to 40 feet; 802.11 wifi radio - and potential for Cellular Capability).
https://www.barcodesinc.com/media/pdf/Zebra/mc9400-mc9450.pdf
![TC5301-0T1K6B1000-NA - Zebra TC53 Mobile Computer [Advanced Range, 8GB RAM/128GB]](TC53.jpg)
TC53 Rugged Handheld (Rugged PDA style device with touch screen only – NO physical keypad; Extended range 1D and 2D scanning from a few inches to 40 feet; 802.11 wifi radio- and- WLAN cellular radio capability).
https://www.barcodesinc.com/media/pdf/Zebra/tc53-tc58.pdf
TC22 Handheld
(Semi-Rugged PDA style device with touch screen only – NO physical keypad;
Extended Range 1D and 2D scanning from a few inches to 4 feet; 802.11
wifi radio- and- WLAN cellular radio capability)
https://www.barcodesinc.com/media/pdf/Zebra/tc22-tc27.pdf
ET40
TABLET – 8” or 10” screen (Semi-Rugged Tablet with touch screen –
NO physical keypad; Limited range, 1D and 2D scanning from a few inches
to 4 feet; 802.11 wifi radio- and- WLAN cellular radio capability)
https://www.barcodesinc.com/media/pdf/Zebra/et40-et45.pdf
Accessories Guide (with fork lift cradle options – check out page 41)
ET60
TABLET –10” screen (Rugged Tablet with touch screen
– NO physical keypad; Limited range, 1D and 2D scanning from a few inches
to 4 feet; 802.11 wifi radio- and- WLAN cellular radio capability) Typically
mounted on fork lift.
https://www.barcodesinc.com/media/pdf/Zebra/et60-et65.pdf
Accessories Guide (with fork lift cradle options – page 3) https://www.zebra.com/content/dam/zebra_dam/en/guide/configuration-and-accessories/et60-et65-guide-accessory-en-us.pdf

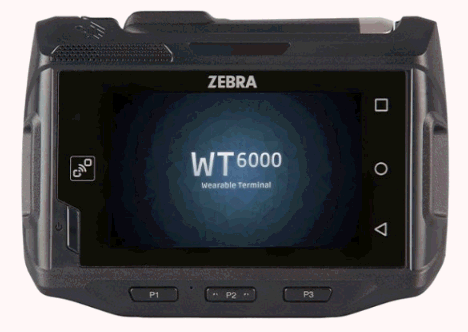

ZEBRA ET50 TABLET ZEBRA WT6000 Wearable

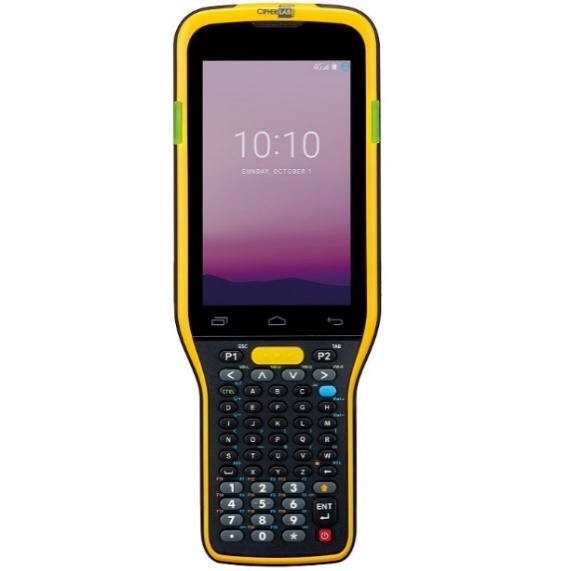

CIPHERLAB RK95
Monitor: Color
Installation: Install from Server
Printer: PCL/PS compatible
Remote Desktop Services/Terminal Server (for Mobile Handheld Devices)
Operating System: Windows Server 2016, Server 2019, Server 2022
Note: WiSys STRONGLY recommends a stand alone server be utilized for running Terminal Services or Remote Desktop Services. We do NOT support running Terminal Services or Remote Desktop Services on a Domain Controller, Backup Domain Controller or License Server. Windows Small Business Server will NOT work with Remote Desktop Services.
Processor: 2.0 GHz (or better)
Memory: 4 GB of RAM Minimum for 32 bit Server OS and 8 GB of RAM for 64-bit Server OS. In addition to the Server OS Memory, a minimum of 512MB RAM per Device and 2 GB of RAM per Desktop User that will be connecting to the server.
Drives: WiSys strongly suggests Solid State drives whenever possible for performance reasons. Free Disk space...Monitor: VGA or SVGA with 1024 x 768 minimum resolution.
Free Disk Space: Minimum of 1GB for System / Application Software
Installation: Install From Server
Other: .Net Framework 4.8
Printer: PCL/PS compatible
Pointing Device: Microsoft-compatible mouse
License: 1 Microsoft Remote Desktop USER Client Access License PER Device
32-Bit SAP Business One DI-API
SAP HANA Database Client
SAP Business One Client (For SAP Version 10 Only)
Application Server - Terminal Server or Citrix (Desktop Applications)
Operating System: Windows Server 2016, Server 2019, Server 2022
Processor: 2.0 GHz (or better)
Drives: WiSys strongly suggests Solid State drives whenever possible for performance reasons. Free Disk space...Monitor: VGA or SVGA with 1024 x 768 minimum resolution.
Free Disk Space: Minimum of 1GB for System / Application Software
Memory: 4 GB of RAM Minimum for 32 bit Server OS and 8 GB of RAM for 64-bit Server OS. In addition to the Server OS Memory a minimum of 512 MB RAM Per Device and 2 GB of RAM Per Desktop User that will be connecting to the server.
Monitor: VGA or SVGA with 1024 x 768 minimum resolution
Installation: Web Download
Other: .Net Framework 4.8
Printer: PCL/PS compatible
Pointing Device: Microsoft-compatible mouse
Free Disk Space: Minimum of 1GB for System / Application Software
License: 1 Microsoft Remote Desktop License Per DEVICE
32-Bit SAP Business One DI-API
SAP HANA Database Client
SAP Business One Client (For SAP Version 10 Only)
Printing
WiSys supports Microsoft’s best printing practices and thus recommends and supports printing to TCIP/IP based printers defined on the local area network. We do NOT recommend or support printing to shared or redirected printers connected to other devices on the network either locally or through Remote Desktop/Terminal Services.
WiSys recommends Zebra printers for label printing. We have found their popularity and availability of printer drivers aid in the configuration process. We have also tested and have customers using TSC printers. Here are the models of Zebra and TSC printers we support:
NOTE: If you are using the WiSys Label Designer (build release 567.2 or later), all printers must support ZPL printer language.
Zebra Printers:
Desktop - GX Series – Took the place of the TLP https://www.emkat.com/products/zebra-gx420d-desktop-printer-from-zebra/
Mid-range - ZT230 Series – Took the place of the S4M https://www.emkat.com/products/zebra-zt200-series/
High End - ZT410 Series – Took the place of the ZM400 series https://www.emkat.com/products/zebra-zt400/
TSC Printers:
Desktop – TC Series
Entry level Full Size – ME240
ML-240
Mid-range – 2410MT
High-end (very fast) – MX240
MH240
If you are using the WiSys small package shipping solution; the ShipRush application only supports this list of Zebra
printers:
Zebra ZP450
Zebra ZP500
Zebra ZP550
Zebra GK420
Zebra GX420
Zebra ZP505
Zebra Z4M
Zebra ZT400
ZT230(203 dpi models)
Zebra ZT410
Zebra 105SL (in 203 dpi mode)
Similar 203 dpi ZPL based printers are expected to work properly, however only the models above are officially supported.
Any brand/model of printer that is not in either list above may incur additional consulting dollars during implementation.
Test Environment
WiSys STRONGLY recommends a complete test environment.
- Test HANA Server
- Test Remote Desktop Server (only necessary if connecting mobile devices and can be implemented on test application server as long as it is not a backup domain controller)
- Client PC pointing to test servers
- Connection to network printers so printing functions can be tested.
NOTE: A test database on a production server does not constitute a test environment. It is impossible to update WiSys versions on that database only without compromising the production environment.
01/21/2025
